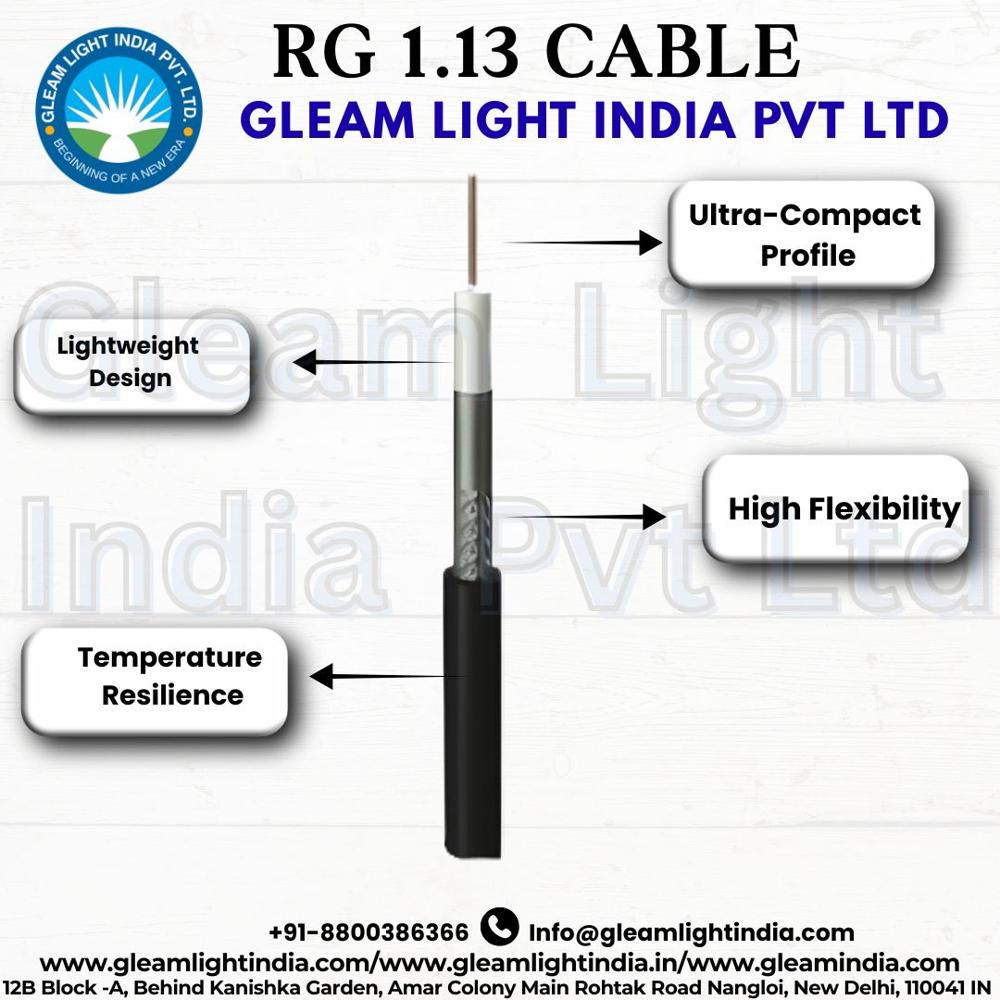

Cable RG 1.13

Name: Cable RG 1.13
Brand: GLEAM LIGHT INDIA PRIVATE LIMITED
Price: 60.0 INR
Availability: InStock

60.0 INR/Meter

Get a Price/Quote

Product Details:

Cable Type RF COAXIBLE CABLE
Impedance 50 Ohm (ohm)
Rated Temperature -40 ~+65 Celsius (oC)
Core Material copper
Usage & Applications FOR RF CABLES
Diameter 1.13 Millimeter (mm)
Number of Conductor 1
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Cable RG 1.13 Price And Quantity

Price 60.0 INR/Meter
Minimum Order Quantity 1 Meter

Cable RG 1.13 Product Specifications

Jacket Color Black
Features Impedance: 50 O Capacitance: 96 pF/M Conductor: Silver-Coated Copper, Minimum Bend Radius: 4.5 mm Colour-Balck/Gray/White
Core Number 1
Conductor Shape Round
Conductor Single
Number of Conductor 1
Core Material copper
Usage & Applications FOR RF CABLES
Diameter 1.13 Millimeter (mm)
Material Copper
Conductor Material Copper
Length 100 Meter (m)
Jacket Material FEP
Rated Temperature -40 ~+65 Celsius (oC)
Connector Color Silver/Golden
Insulation Material FEP
Storage Temperature -40 ~+65 Celsius (oC)
Cable Type RF COAXIBLE CABLE
Impedance 50 Ohm (ohm)
Color Black / Grey
Application Telecommunication
Insulation FEP
Conductor Type Stranded
Product Type RF CABLES
Operating Temperature -40 ~+65 Celsius (oC)

Cable RG 1.13 Trade Information

Supply Ability 100000 Meter Per Month
Delivery Time 5 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details As Per Requirements
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO / ROHS

Product Description

Gleam Light India is a leading manufacturer and supplier of high-performance RG1.13 micro-coaxial cables and precision-engineered RF cable assemblies. As a preferred choice for ultra-thin, flexible RF connectivity, this 1.13mm micro-coaxial cable delivers low-loss and highly reliable signal transmission, particularly in space-constrained environments. Optimized for 50-ohm impedance up to 6 GHz, the cable is commonly paired with connectors such as SMA/RP-SMA, Hirose U.FL-LP-068, and IPEX 20278-112R-13 to directly connect internal wireless modules to external antennas. These robustly shielded assemblies are specifically designed to provide stable RF signal performance for critical applications, including RF communication, GPS navigation, WLAN, and Wi-Fi systems. Every cable assembly from Gleam Light India undergoes 100% RF continuity testing to ensure minimal insertion loss, excellent vibration resistance, and lengths tailored to commercial requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Coaxial Cable' category

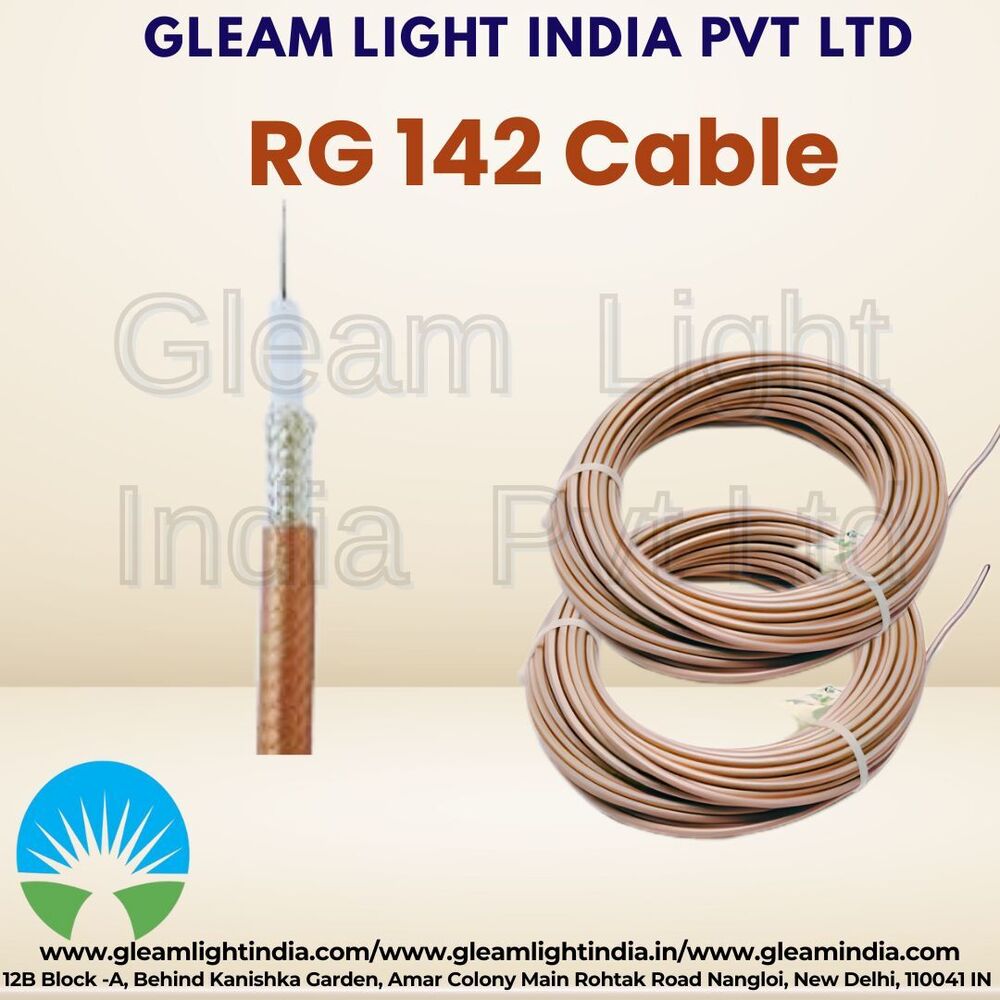

RG 142 CABLE Price : 250.0 INR/Meter Minimum Order Quantity : 1 Jacket Color : Other Conductor Shape : Round Shield Material : silver plated copper wire braiding Jacket Material : FEP Impedance : 50 Ohm (ohm) Conductor Material : Copper Application : Telecommunication Color : Black / Grey Product Type : RF CABLES Conductor Type : Stranded Number of Conductor : 1 Core Number : 1 Connector Color : Silver/Golden Insulation Material : PTFE Material : Copper Core Material : copper Usage & Applications : FOR RF CABLES Features : Impedance: 50 ohms Inner Conductor: Silverplated copper Dielectric: PTFE (Teflon) Shielding: Double silverplated copper braid (high shielding effectiveness) Outer Jacket: FEP (Fluorinated Ethylene Propylene) Operating Frequency: Up to ~18 GHz Temperature Range: 55 C to +200 C Rated Temperature : 55 to 65 c Celsius (oC) Length : 100 Meter (m) Dielectiric Strength : 1500V rms min Newtons per Millimetre Squared (N/mm2) Diameter : 5mm Millimeter (mm) Storage Temperature : 55 to 65 c Celsius (oC) Cable Type : RF COAXIBLE CABLE Size : Outer diameter 2.5 mm approx. Insulation : FEP Weight : Approx. 15 g/m Grams (g) Armored Material : Not armored Conductor : Single Dimension (L*W*H) : Diameter only: nominal 2.5 mm, length customizable Meter (m) Locking Type : Depends on connector, not standard cable Tensile Strength : 20N (approx) Newtons per Millimetre Squared (N/mm2) Operating Temperature : 55 to 65 c Celsius (oC) Install Type : Indoor/Outdoor, flexible routing
