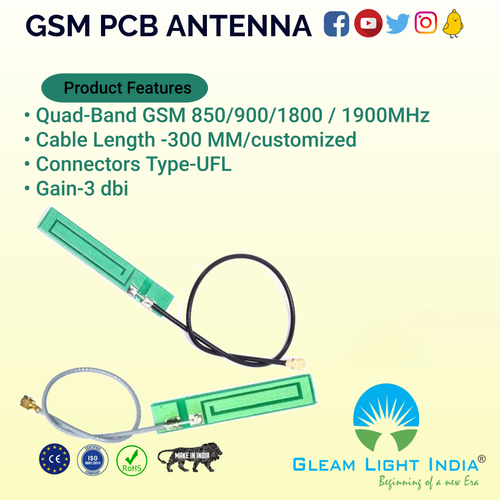

GSM PCB Antenna
65 INR/Unit
Product Details:
- Product Type GSM PCB Antenna
- Weight Approx. 2 grams
- Dimension (L*W*H) 45 mm x 8 mm x 1.2 mm
- Material Fiberglass
- Power 50 mW
- Voltage 3V to 5V
- Usage Industrial
- Click to view more
X
GSM PCB Antenna Price And Quantity
- 50 Unit
- 65 INR/Unit
- 50 Ohm
- 850/900/1800/1900 MHz
- 2 dBi (typical)
- Surface mount/adhesive mounting
- Linear
- 2.0
- Green
- Solder pad
- -40C to +85C
GSM PCB Antenna Product Specifications
- Approx. 2 grams
- Industrial
- 50 mW
- 3V to 5V
- Fiberglass
- 45 mm x 8 mm x 1.2 mm
- Indoor and Outdoor
- GSM PCB Antenna
- High efficiency, compact size, easy installation
- 50 Ohm
- 850/900/1800/1900 MHz
- 2 dBi (typical)
- Surface mount/adhesive mounting
- Linear
- 2.0
- Green
- Solder pad
- -40C to +85C
GSM PCB Antenna Trade Information
- 1000 Unit Per Week
- 5 Days
- All India
Product Description
Owing to our ich industrial experience, we have been a reputed manufacturer of GSM PCB Antenna in the market. It is a compact and integrated antenna designed specifically for GSM (Global System for Mobile Communications) applications. The antenna is built directly onto a printed circuit board (PCB), for easy and seamless integration into systems or devices. GSM PCB Antenna is designed for operating within the frequency bands used by GSM networks, providing reliable signal reception and transmission capabilities. Owing to its compact size and low profile, it is suitable for space-constrained applications such as IoT devices, smartphones, or embedded systems.
| Frequency | 850/900/1800 / 1900 MHz |
| Gain dBi | 2-3 dBi |
| Manufacturer | Gleam Light India |
| Impedance | 50 Ohm |
| Type | Wired |
| Brand | Gleam Light India |
| Color | Green |
| Maximum Input Power | 50W |
| Magnetic Mount | Adhesive |
| Gain | 2-3Dbi |
Efficient Connectivity Across GSM Bands
With full support for GSM frequencies (850/900/1800/1900 MHz), this PCB antenna ensures stable performance and broad compatibility with various communication devices. Whether deployed in indoor or outdoor settings, it reliably facilitates wireless connectivity for industrial or commercial applications.
Compact and Durable by Design
Utilizing durable fiberglass and a compact form factor, the antenna is engineered for environments where space is limited and reliability is critical. Its lightweight and green finish make it unobtrusive for board-level integrations in modern devices.
Simple Installation and Versatile Mounting
The antenna's solder pad connector and available surface mount or adhesive mounting options allow for quick, secure, and flexible installation. Its design minimizes installation complexity, supporting streamlined assembly for manufacturers and distributors.
FAQ's of GSM PCB Antenna:
Q: How do I install the GSM PCB Antenna on my device?
A: Installation involves securing the antenna either through surface mounting or using adhesive, then soldering the pad connector directly onto your PCB. This process ensures reliable contact and ease of integration with compact electronic designs.Q: What applications are suitable for this antenna?
A: This GSM PCB Antenna is ideal for industrial, manufacturing, and commercial projects requiring cellular connectivity, whether for indoor or outdoor use. Its rugged build and broad frequency range make it suitable for a variety of wireless products.Q: When can I expect optimal performance from this antenna?
A: You can expect optimal performance within its operating temperature range of -40C to +85C and voltage range of 3V to 5V. Its high efficiency and 2 dBi typical gain ensure effective transmission under typical GSM network conditions.Q: Where is the best location to mount this antenna?
A: For best results, mount the antenna in a position clear of obstructions, on a non-metallic surface if using adhesive, and close to the edge of your PCB for improved signal propagation. Its green fiberglass material blends well on most boards.Q: What is the benefit of the antenna's compact size and lightweight design?
A: The compact dimensions (45 x 8 x 1.2 mm) and low weight (approx. 2 grams) allow for unobtrusive integration in space-restricted devices while reducing overall product weight. This is especially beneficial in portable or embedded solutions.Q: How does the solder pad connector facilitate the installation process?
A: The solder pad connector is designed for easy, reliable surface mounting, reducing assembly time and ensuring a secure electrical connection, making it suitable for automated production lines and rapid prototyping.Q: What materials are used in the construction of this antenna, and why?
A: The antenna's core is crafted from fiberglass for enhanced durability and stable performance in both indoor and outdoor conditions. This material offers resistance to environmental wear, supporting long-term, reliable operation.Tell us about your requirement
