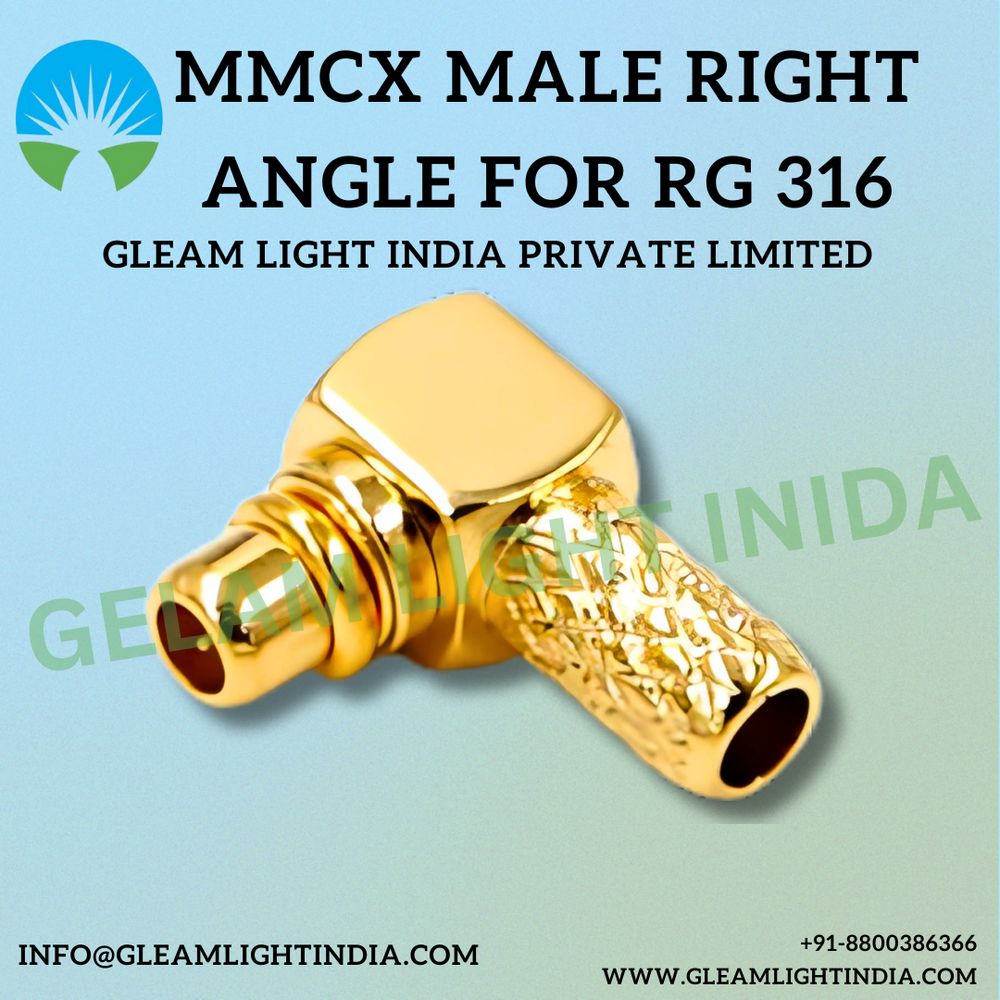

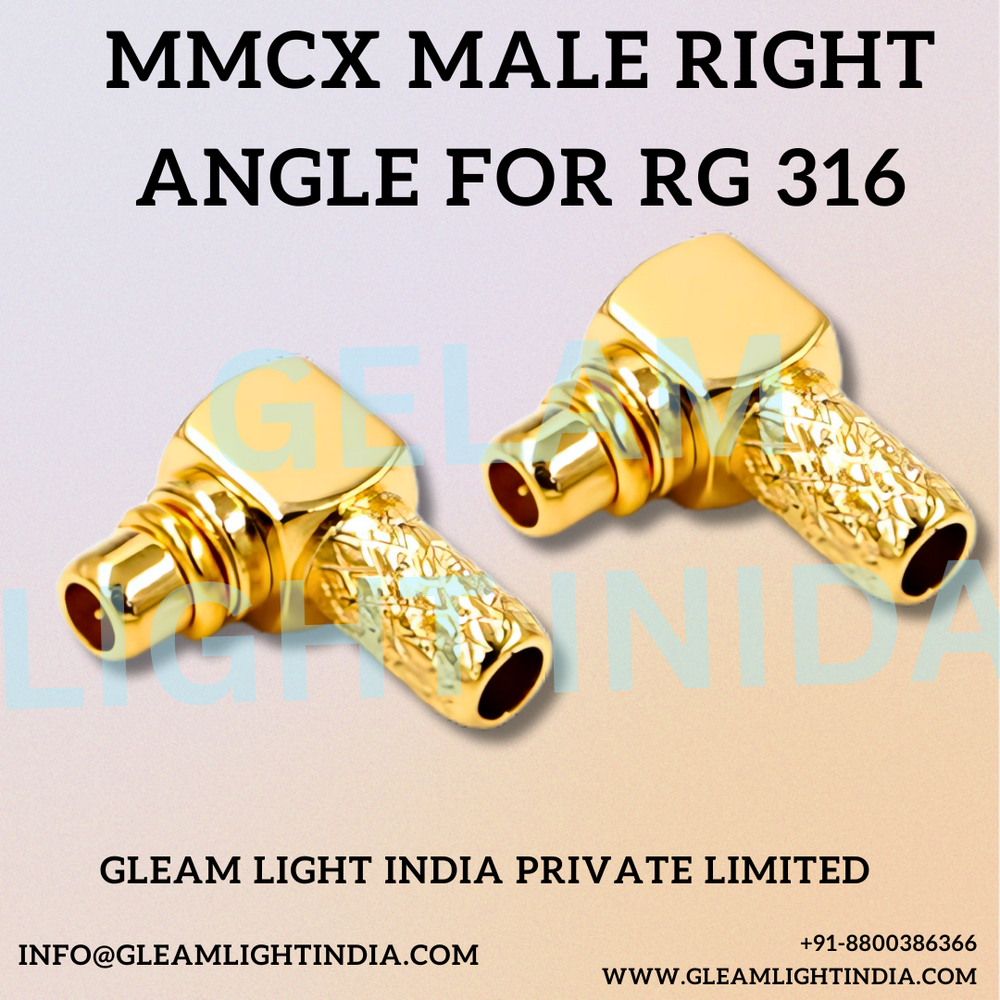

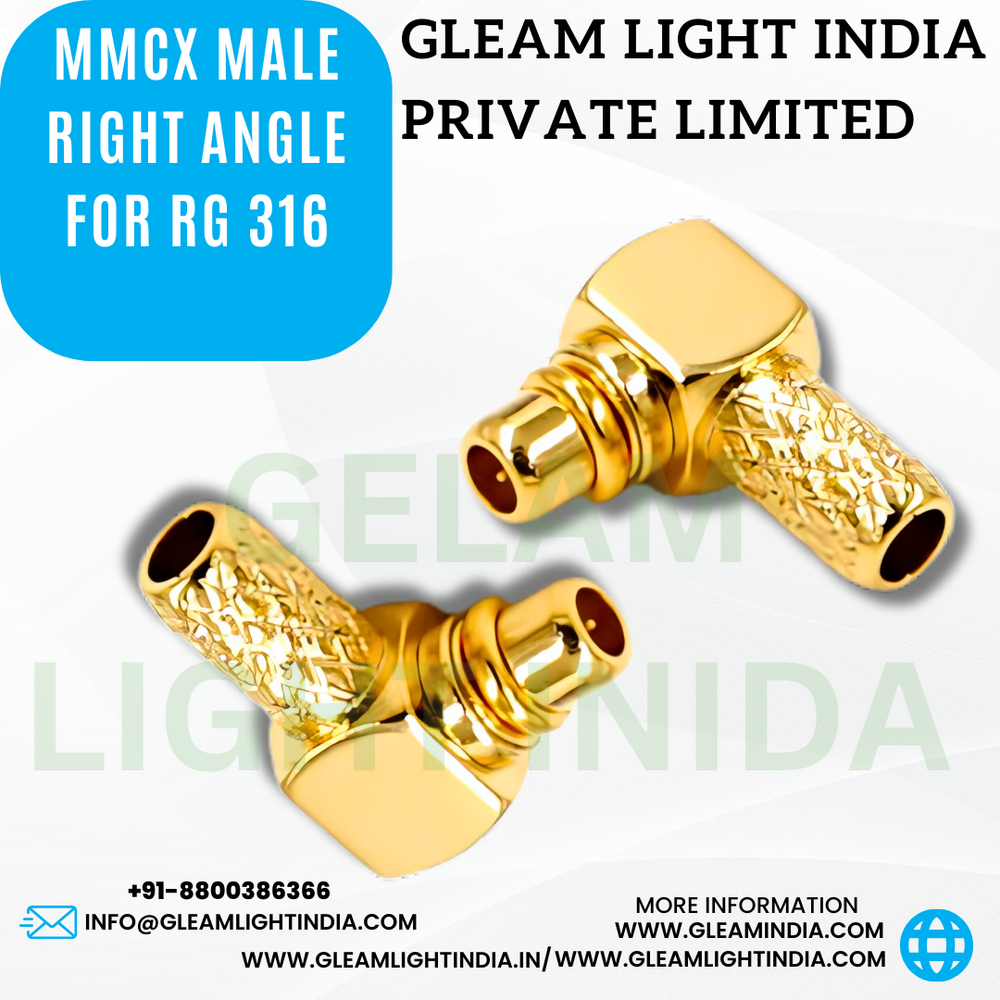

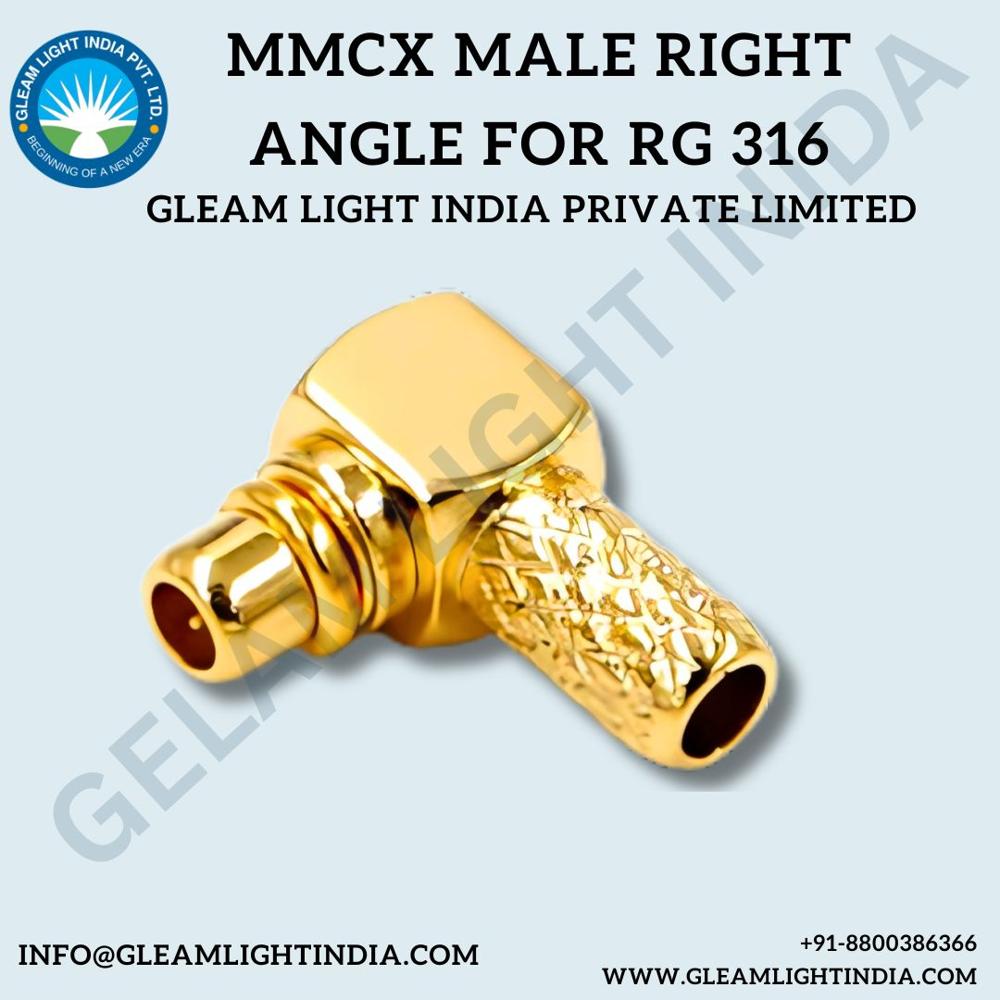

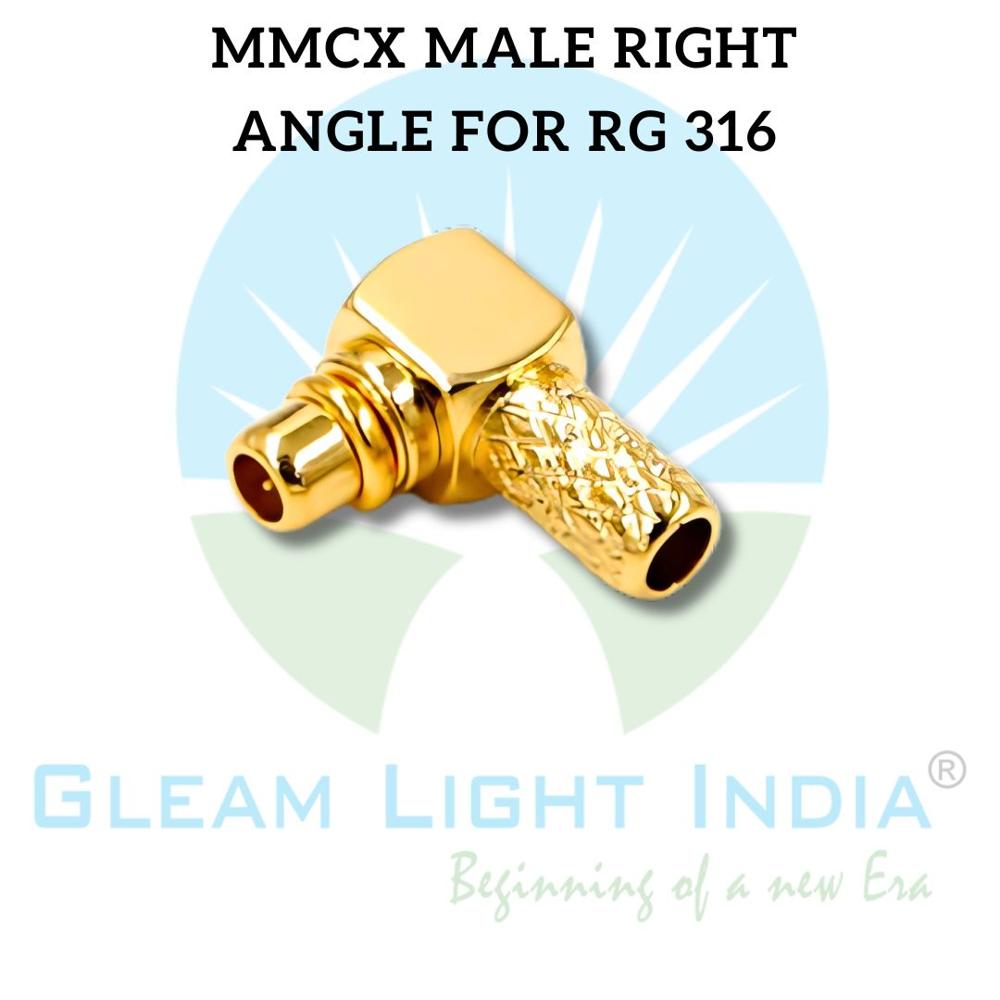

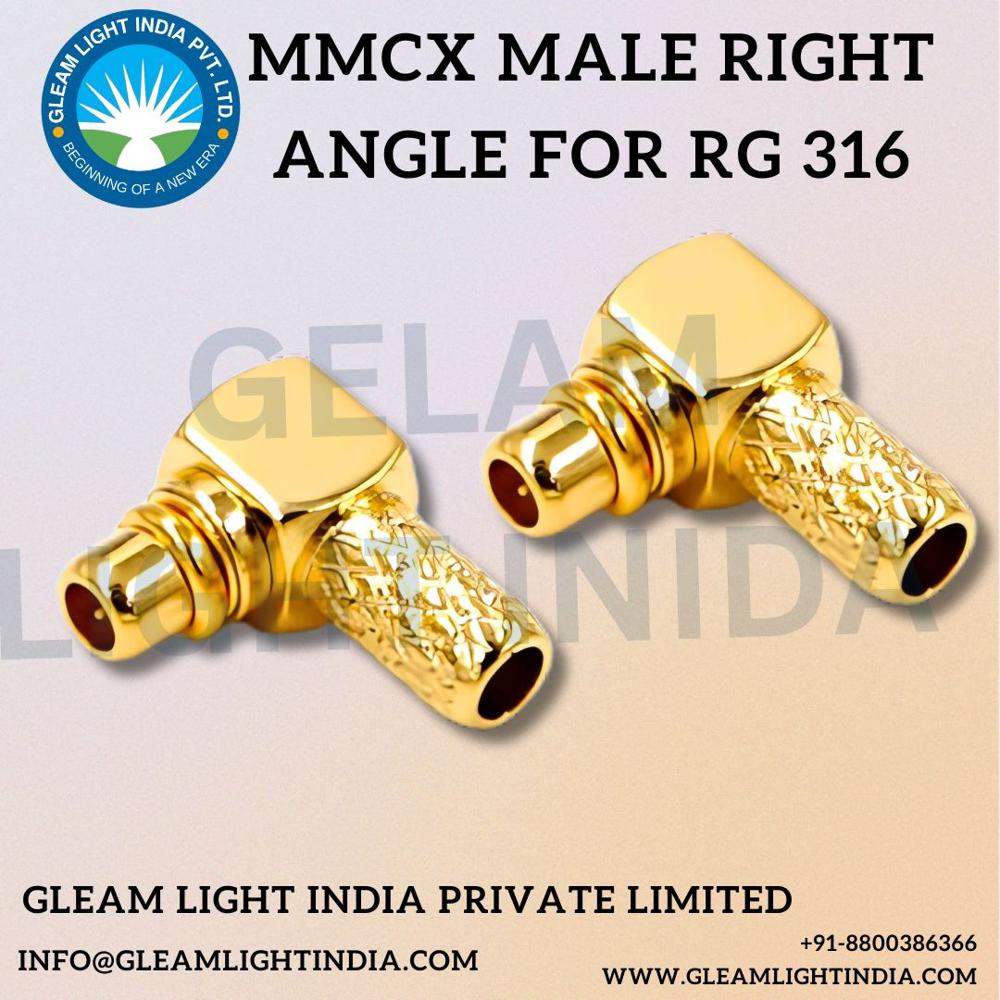

MMCX Male Right Angle For RG 316
40.0 INR/Number
Product Details:
- Female End Type MALE
- Male End Type male
- Connector 2
- Pairs 2
- Temperature 55 C to +165 C Celsius (oC)
- Application RF CONNECTORS
- Wire Gauge 26 AWG center conductor
- Click to view more
X
MMCX Male Right Angle For RG 316 Price And Quantity
- 40.0 INR/Number
- 1 Number
MMCX Male Right Angle For RG 316 Product Specifications
- Yellow
- 2
- 2
- Customize Meter (m)
- RF CONNECTORS
- 2.5 mm Millimeter (mm)
- PTFE (Teflon)
- PTFE
- 55 C to +165 C Celsius (oC)
- MALE
- 26 AWG center conductor
- 2
- 12 15 mm. Millimeter (mm)
- Coaxial
- male
- Brass
MMCX Male Right Angle For RG 316 Trade Information
- Cash Advance (CA), Cheque
- 10000 Number Per Month
- 5 Days
- No
- Contact us for information regarding our sample policy
- As Per Requirement
- Asia
- All India
- ISO / ROHS
Product Description
The MMCX male connector is a compact, snap-on RF coaxial connector designed for use with RG-316 cable. It supports a 50-ohm impedance and provides reliable electrical performance up to 6 GHz. The connector features a brass body with gold plating for low signal loss and corrosion resistance, while the PTFE dielectric ensures stable insulation at high frequencies. Owing to its small size and secure locking mechanism, the MMCX male connector is widely used in GPS, WLAN, LTE, IoT devices, and compact RF modules where space-saving and dependable RF connectivity are required.
Precision-Engineered RF Connectivity
The MMCX Male Right Angle for RG 316 is crafted for high-performance RF applications, suitable for connecting wireless modules and communication devices in tight spaces. With brass shielding and a durable PTFE jacket, this connector accommodates demanding environments and provides long-lasting, stable signal transmission.
Versatility and Customization
Available with customizable cable lengths and engineered for use with 26 AWG center conductors, this coaxial assembly supports varied installation requirements. Its right-angle design and compact dimensions (12-15 mm in length, 2.5 mm outer diameter) facilitate integration into equipment with limited space.
Reliable Distribution Across India
Our MMCX cable assemblies are distributed, manufactured, and exported by trusted partners throughout India. Whether you are sourcing for large-scale manufacturing or specialized RF projects, procurement is streamlined and supported by comprehensive technical expertise.
FAQ's of MMCX Male Right Angle For RG 316:
Q: How is the MMCX Male Right Angle for RG 316 cable used in RF applications?
A: This cable assembly is commonly used to connect RF modules, antennas, and communication equipment. The right-angle MMCX connector saves space, while the RG 316 cable ensures minimal signal loss and robust performance in broadband, test equipment, or wireless setups.Q: What benefit does PTFE (Teflon) insulation provide in this cable assembly?
A: PTFE insulation offers excellent thermal stability, chemical resistance, and electrical insulation. This ensures reliable signal transmission across the specified temperature range (-55C to +165C) and extends the life of the cable even in challenging environments.Q: When should I choose a right-angle MMCX connector?
A: A right-angle MMCX connector is preferred in installations where space is limited or cable routing requires tight bends. It helps prevent cable strain and damage in compact or densely packed electronic assemblies.Q: Where can I purchase the MMCX Male Right Angle for RG 316 in India?
A: This product is available through reputable distributors, exporters, suppliers, manufacturers, and traders across India. Contact your preferred partner for availability, customization, and technical support.Q: What is the process for customizing the cable length?
A: You can specify your required cable length when placing an order. The manufacturer or supplier will assemble the MMCX RG 316 cable to your specifications, ensuring a perfect fit for your application.Q: How does brass shielding benefit the cable?
A: Brass shielding protects the cable from electromagnetic and radio frequency interference, ensuring consistent signal quality and reducing data loss or distortion in sensitive RF applications.Tell us about your requirement
