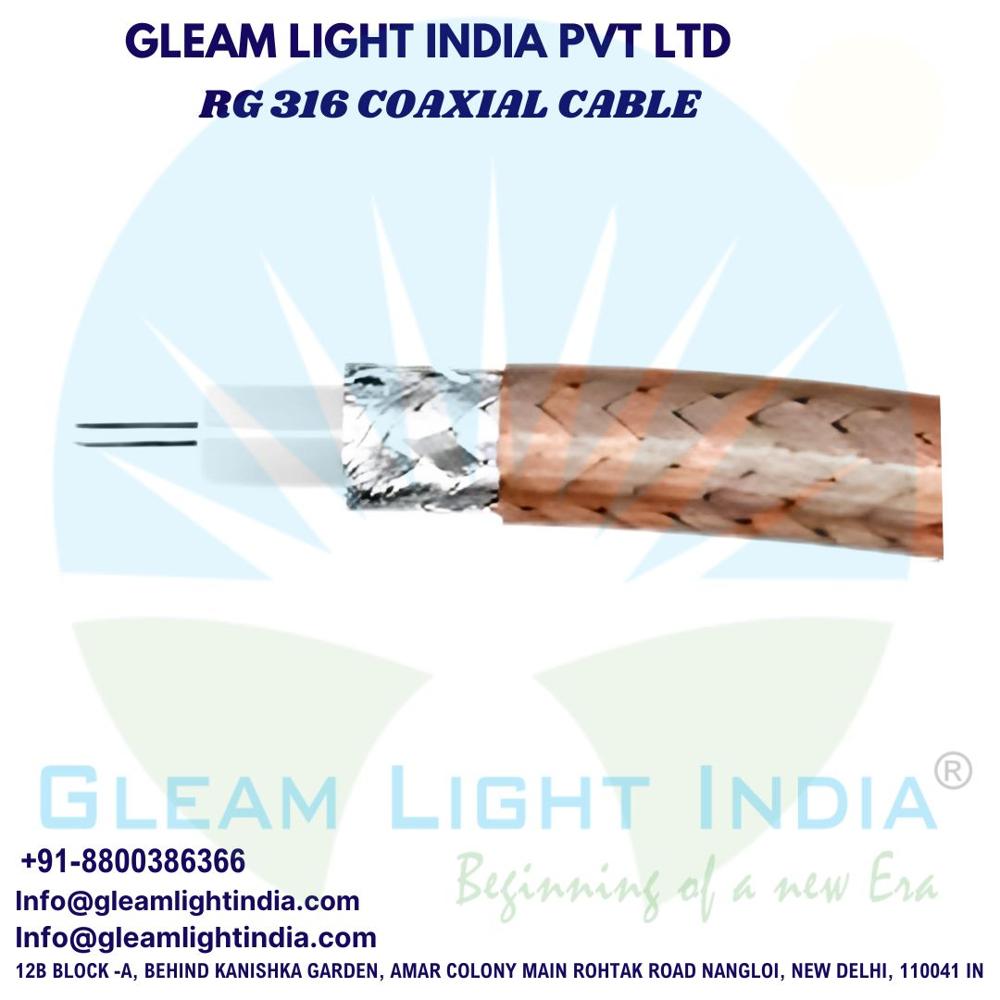

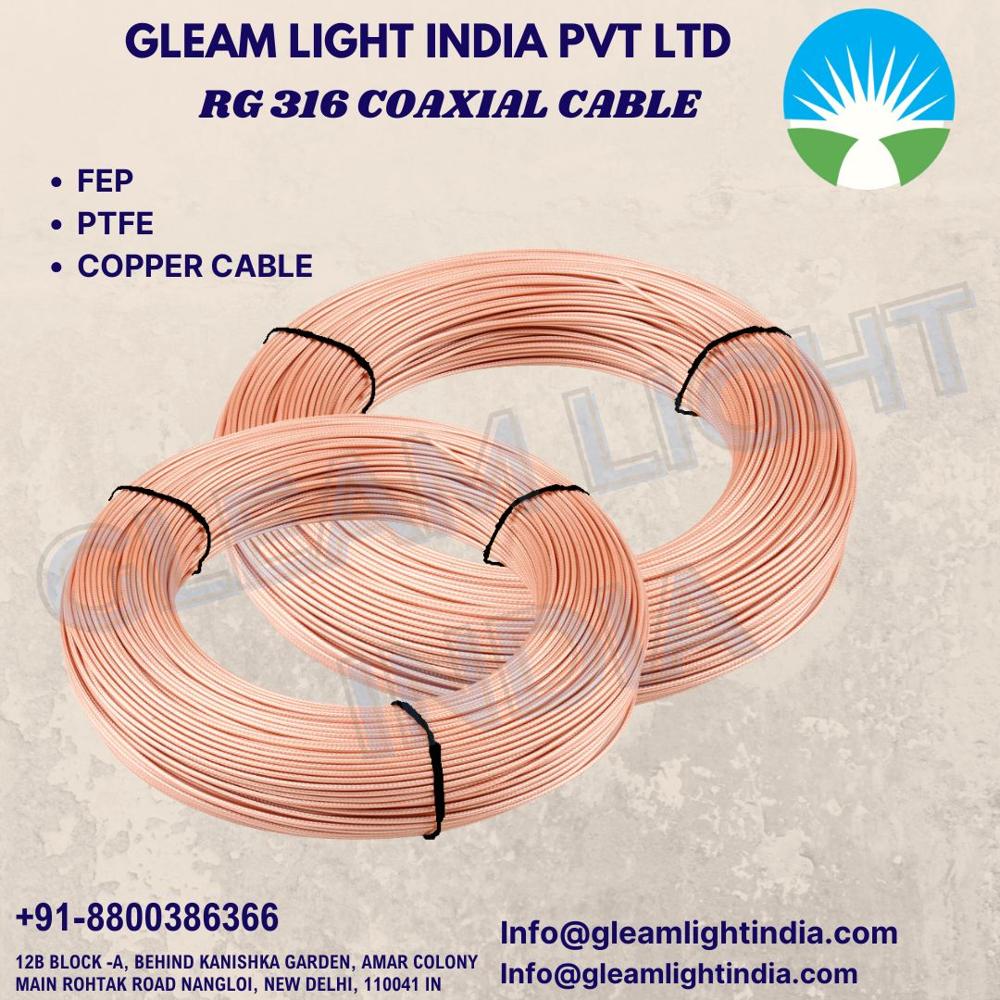

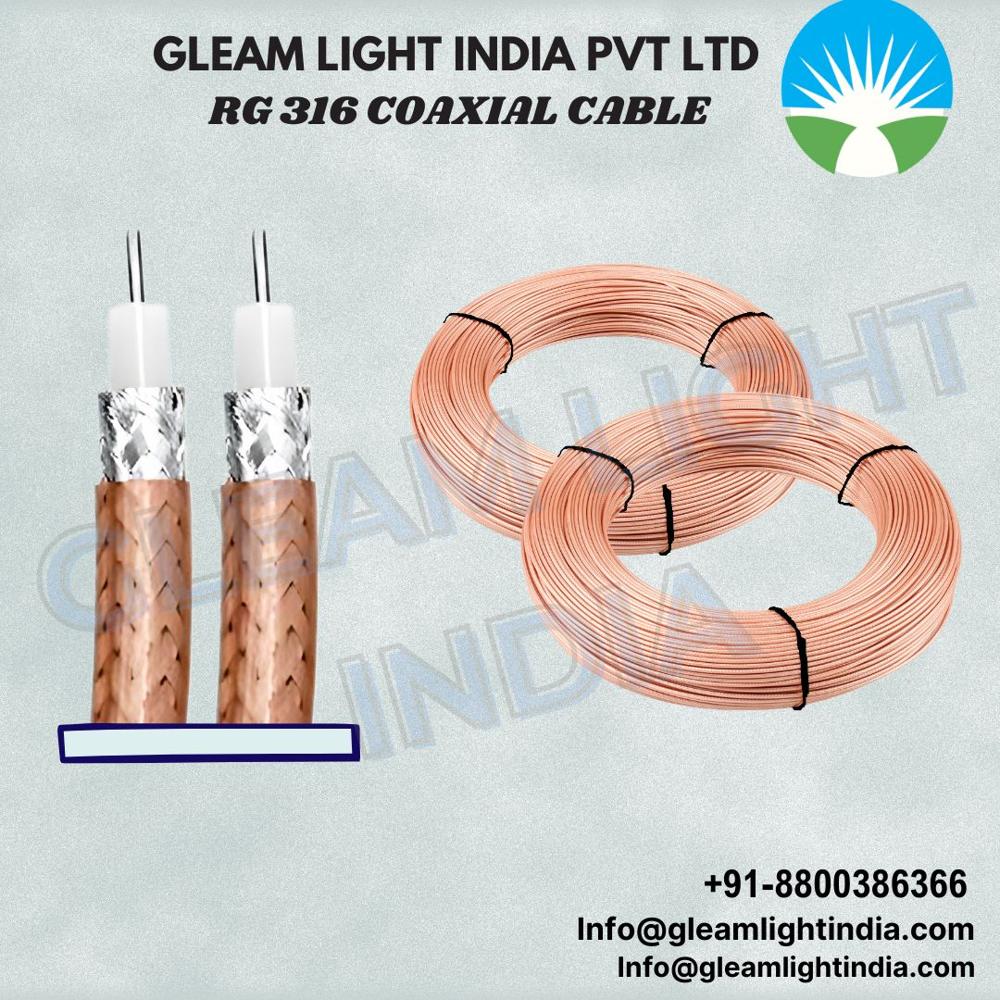

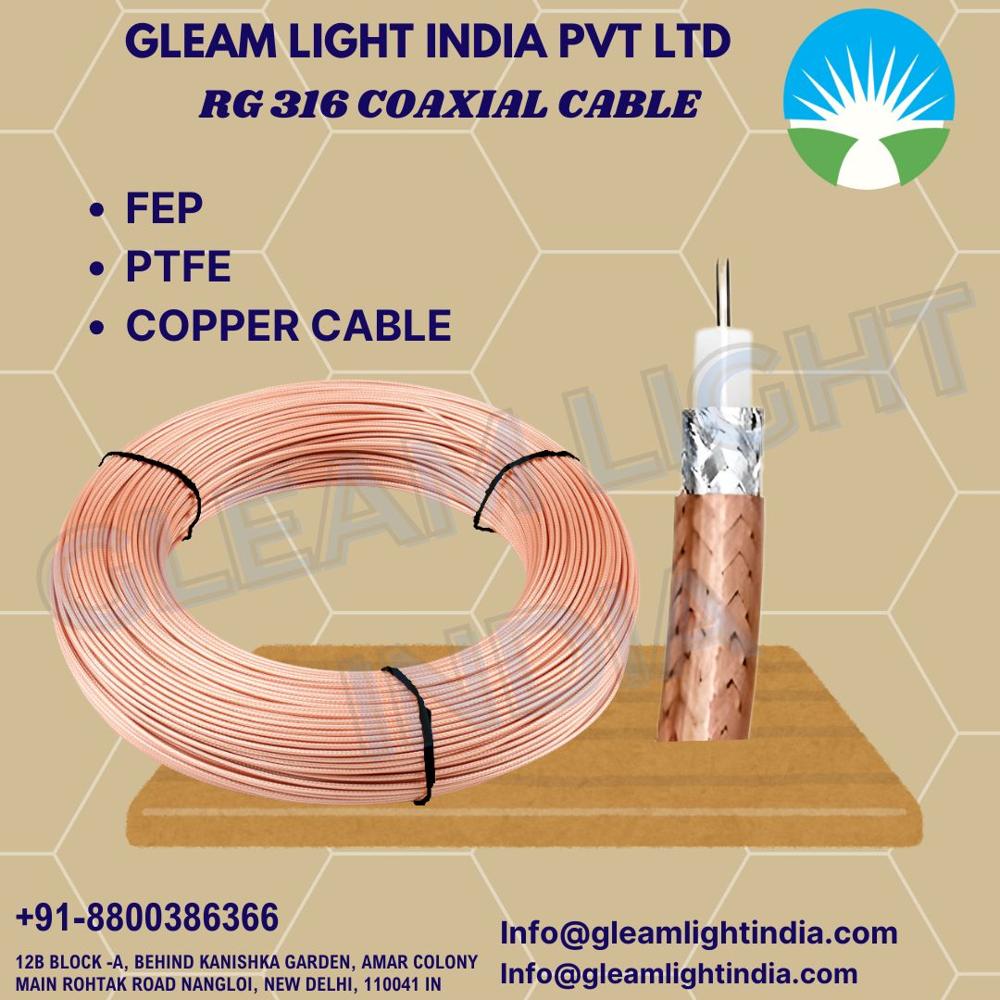

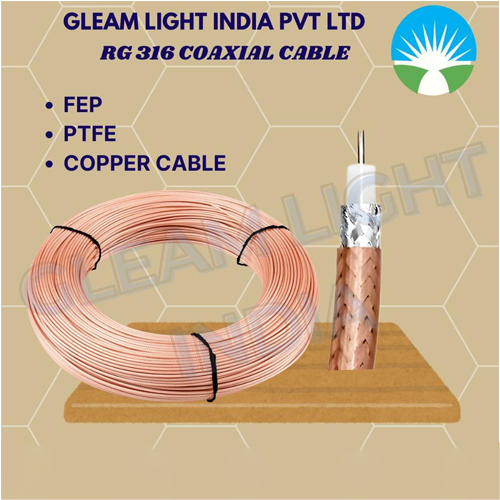

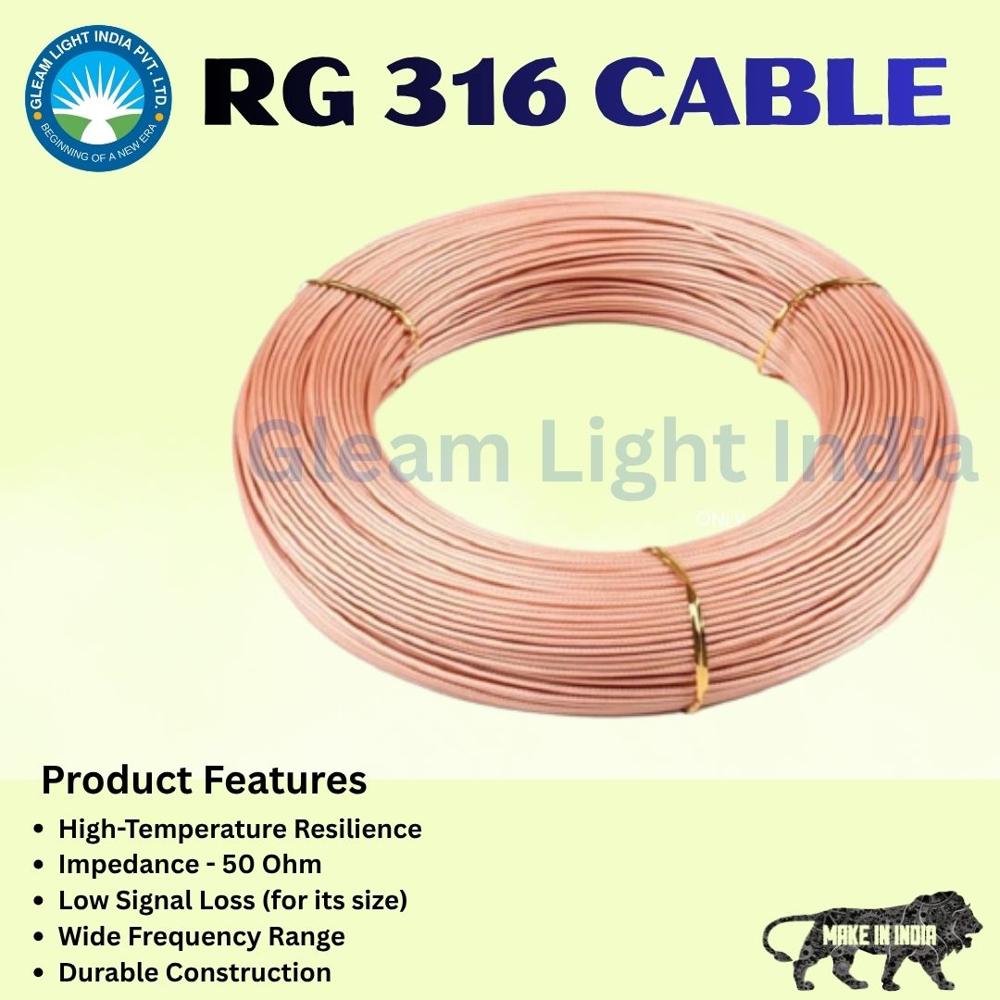

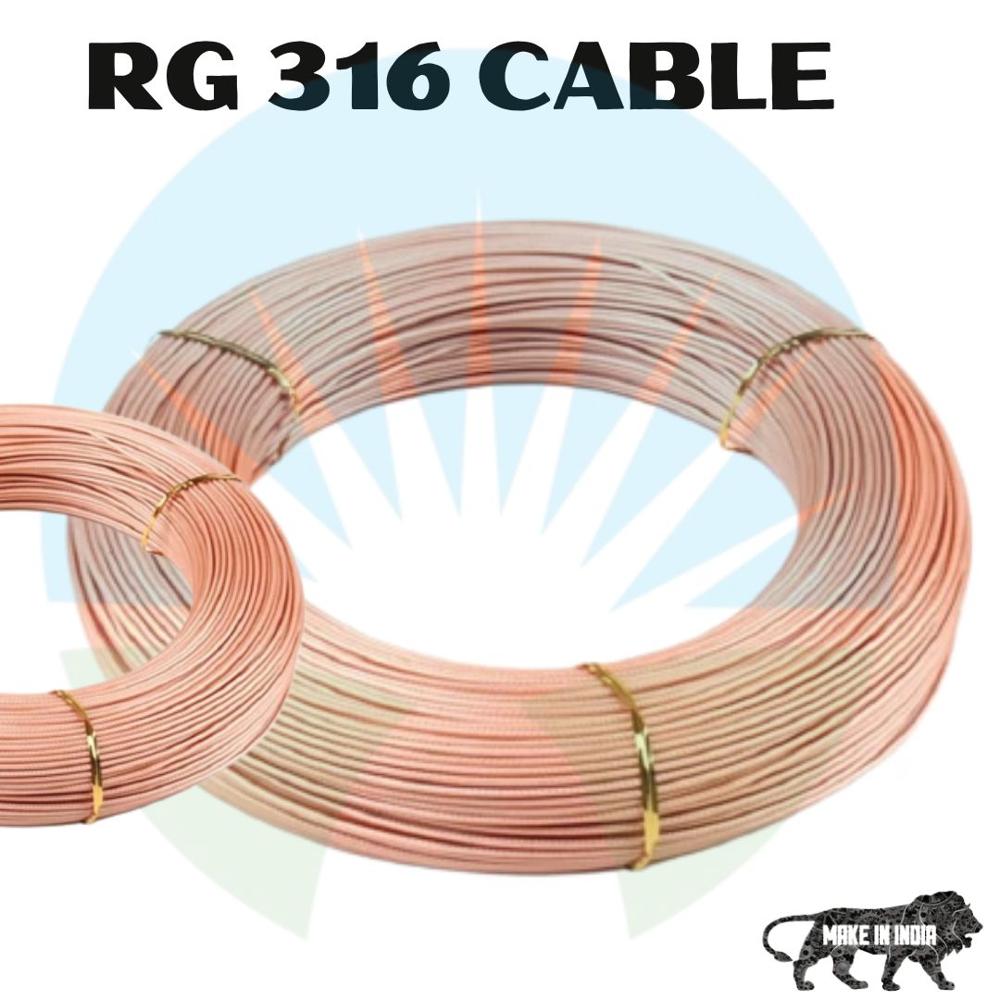

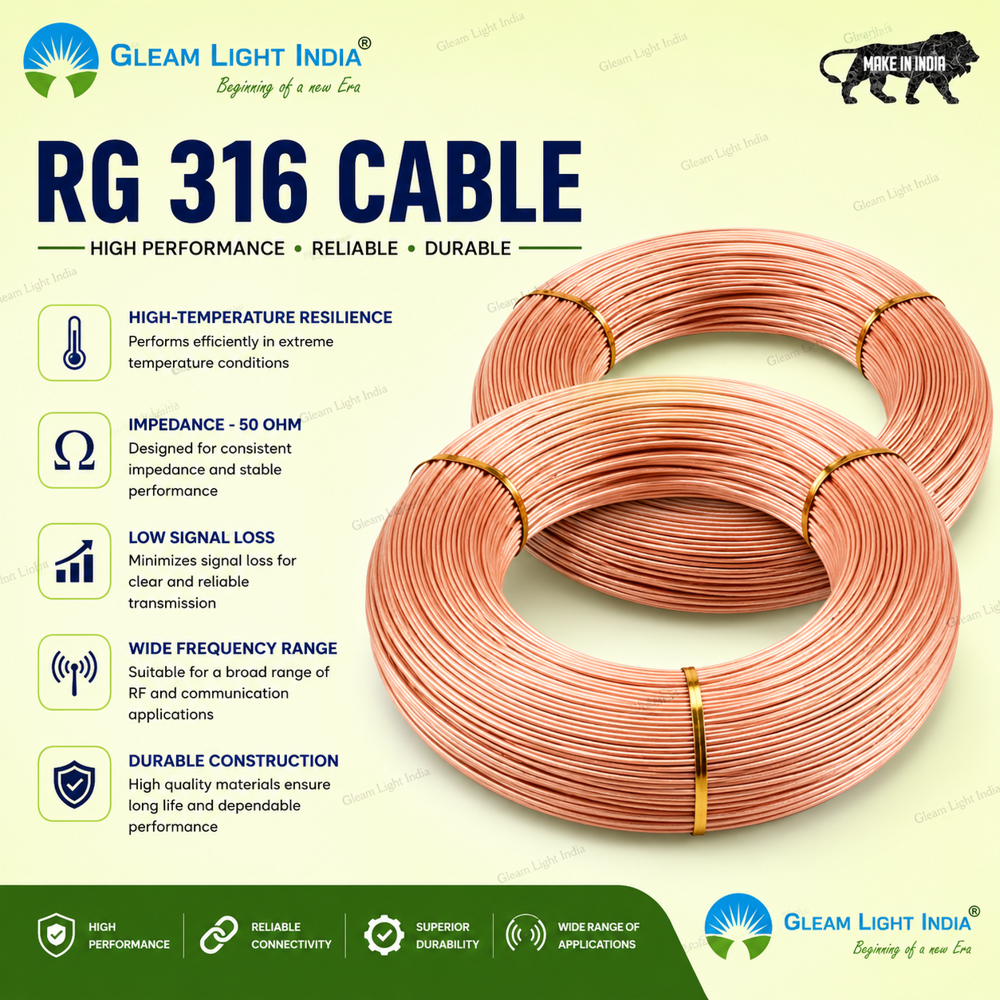

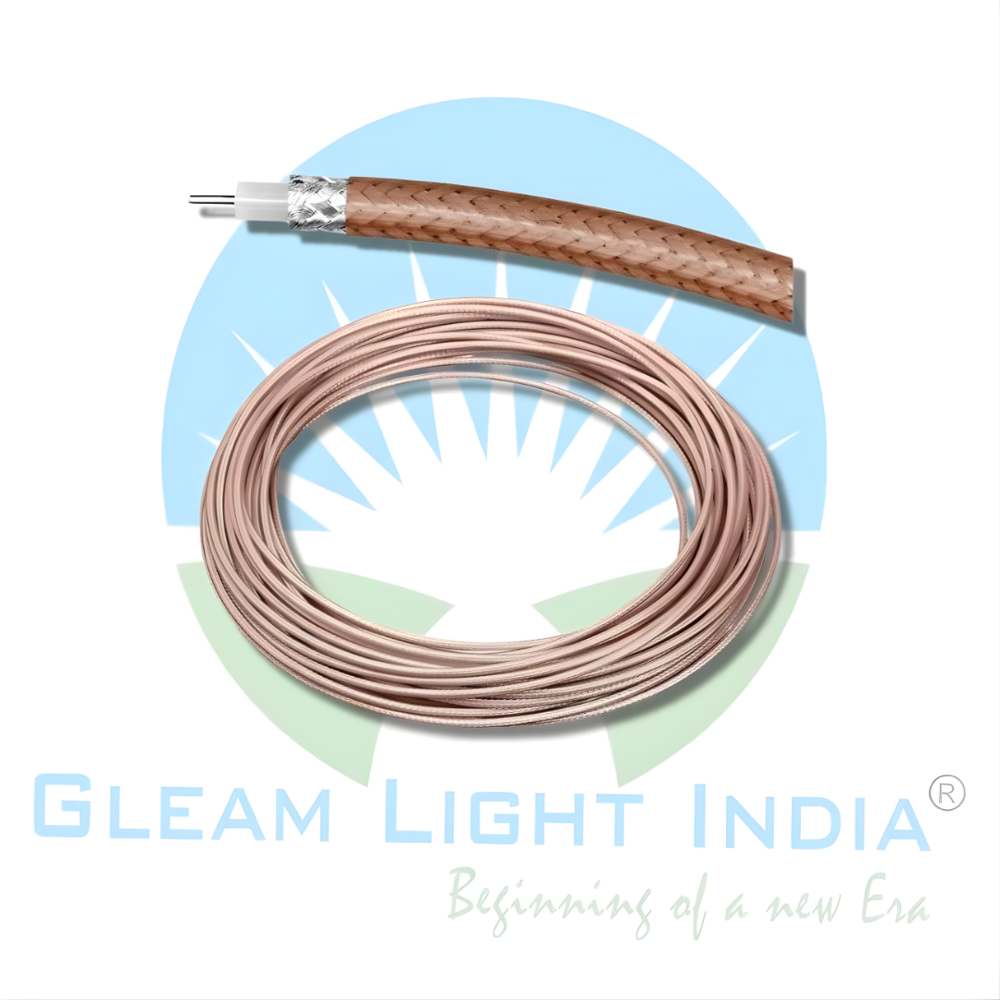

Rg316 Coaxial Cable

Name: Rg316 Coaxial Cable
Brand: GLEAM LIGHT INDIA PRIVATE LIMITED
Price: 85.0 INR
Availability: InStock

85.0 INR/Meter

Get a Price/Quote

Product Details:

Usage & Applications RF transmission, communication equipment, GPS, test laboratories, industrial automation
Armored Material Not armored
Rated Temperature -25 to +85 C Celsius (oC)
Core Number Single
Features High temperature resistance, Flexible, Low signal loss, High frequency performance, Flame retardant, Durable
Tensile Strength 20N (approx) Newtons per Millimetre Squared (N/mm2)
Insulation PTFE
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Rg316 Coaxial Cable Price And Quantity

Price 85.0 INR/Meter
Minimum Order Quantity 1 Meter

Rg316 Coaxial Cable Product Specifications

Jacket Color Brown
Install Type Indoor/Outdoor, flexible routing
Product Type Co Axial Cables
Core Material Silver-plated copper
Connector Color Copper/Gold/Steel (depends on connector type, not standard cable)
Operating Temperature -25 to +85 C Celsius (oC)
Size Outer diameter 2.5 mm approx.
Conductor Type Solid
Impedance 50 Ohms Ohm (ohm)
Weight Approx. 15 g/m Grams (g)
Conductor Shape Round
Diameter 2.5 mm nominal Millimeter (mm)
Storage Temperature -25 to +85 C Celsius (oC)
Locking Type Depends on connector, not standard cable
Dielectiric Strength 1500V rms min Newtons per Millimetre Squared (N/mm2)
Cable Type RG-316 coaxial
Number of Conductor 1
Length Standard: 1, 2, 5, 10 meters; Custom lengths available Meter (m)
Conductor Material Other
Application Industrial
Material FEP, silver-plated copper, PTFE dielectric
Features High temperature resistance, Flexible, Low signal loss, High frequency performance, Flame retardant, Durable
Shield Material Silver Plated Copper Braid
Core Number Single
Insulation Material Other
Dimension (L*W*H) Diameter only: nominal 2.5 mm, length customizable Meter (m)
Armored Material Not armored
Rated Temperature -25 to +85 C Celsius (oC)
Usage & Applications RF transmission, communication equipment, GPS, test laboratories, industrial automation
Jacket Material Other
Insulation PTFE
Color Brown/Tan
Tensile Strength 20N (approx) Newtons per Millimetre Squared (N/mm2)

Dielectric Material PTFE (Polytetrafluoroethylene)
Maximum Capacitance 96 pF/m
Frequency Range DC to 3 GHz
Inner Conductor Diameter 0.51 mm
Braid Coverage 95% minimum
RoHS Compliant Yes
Manufacturer/Brand As per buyer requirement or OEM
Minimum Bending Radius 10 mm
Flame Retardance UL VW-1
Attenuation (at 1 GHz) 0.39 dB/m

Rg316 Coaxial Cable Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 1000 Meter Per Week
Delivery Time 5 Days
Packaging Details As per requirement
Main Domestic Market All India
Certifications ISO

Product Description

Gleam Light India offers the RG-316 cable. This RG-316 coaxial cable delivers excellent performance and serves as a robust, reliable solution for demanding RF transmission applications. Its key featuressuch as high strength (approximately 20N), at least 95% silver-plated copper braid coverage, and very low signal loss (0.39 dB/m at 1 GHz)make it an excellent choice for GPS, communication, and industrial automation.

Product details

Impedance	50 Ohm
Country of Origin	Made in India
Color	Golden/Silver
Cable Jacket	Fluorinated Ethylene Copper
Cable Conductor	Copper
Insulation	Conductor/Shield: Silver Covered Copper
Inner Sheath	Silver Covered Copper Clad Steel
